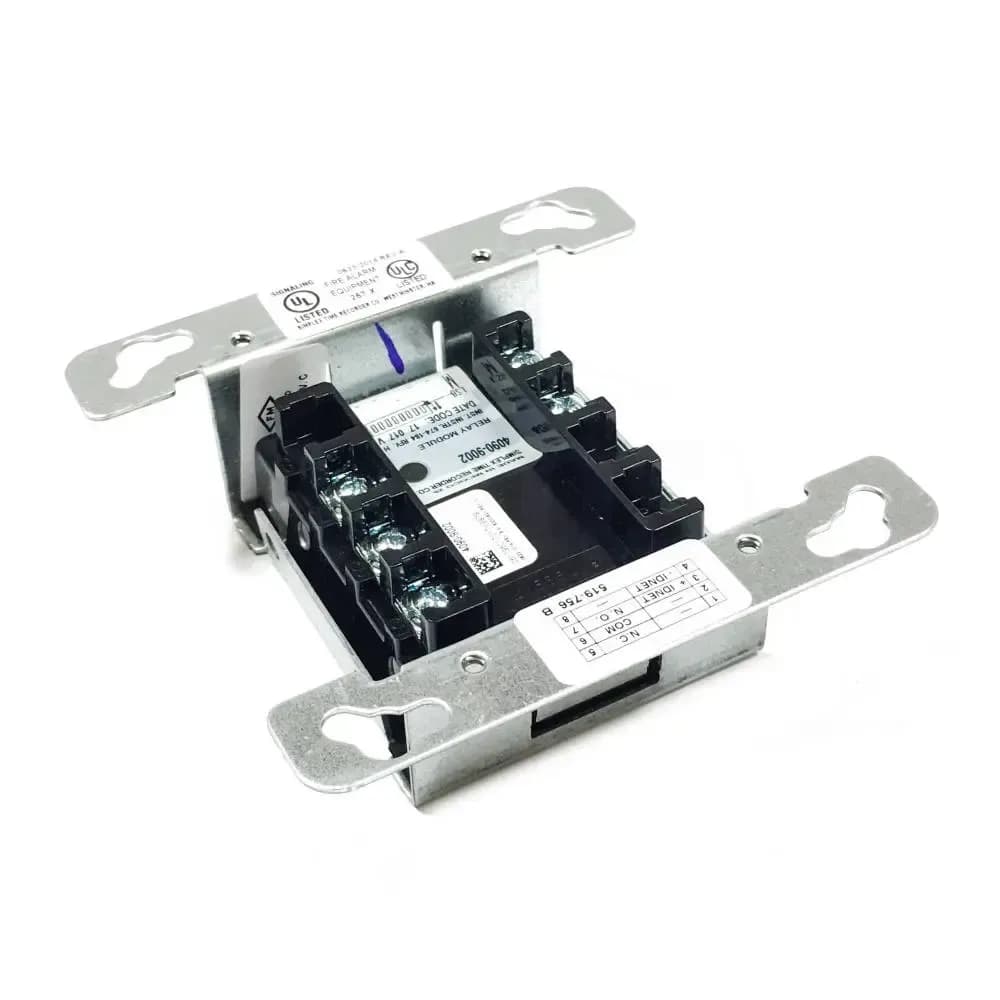

SIMPLEX 4090-9002(SIMPLEX)

Description

Specification

IDNet Relay IAMs allow fire alarm control panels to control a remotely located Form “C” contact using IDNet addressable communications for both data and module power. Typical applications would be for switching local power for control functions such as elevator capture, or control of HVAC components, pressurization fans, dampers, etc. Relay status is also communicated requiring only one device address.

Individual Addressable Relay Module (Relay IAM):

· IDNet addressable control for use with Simplex® fire alarm control panel models 4007ES, 4008, 4010, 4010ES, 4100ES, and 4100U. A single addressable point provides control and status tracking of a Form “C” contact

· Low power latching relay design allows IDNet communications to supply both data and module power

· Relay is set to OFF on initial power up and upon loss of IDNet communications
